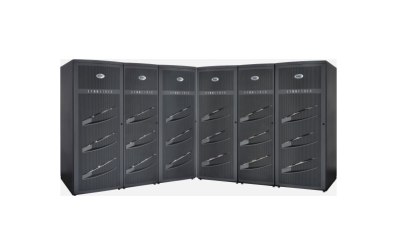

symmetrix-dmx4

Erreur Constatée :

vi mapping_SRV_HP_18072013.txt

« mapping_SRV_HP_18072013.txt » [New file]
map dev 15D6 to dir 4D:0 lun=1C0, wwn=500143800119XXXX;
map dev 15D6 to dir 7D:0 lun=1C0, wwn=500143800119XXXX;

« mapping_SRV_HP_18072013.txt » [New file] 2 lines, 114 characters

#symconfigure -sid XXXX -f « mapping_SRV_HP_18072013.txt » -v -nop preview
A Configuration Change operation is in progress. Please wait…
Establishing a configuration change session……………Established.

Error occurred while Defining change number 1:
    The current device masking record has dynamic lun addresses
    Device 15D6 generated the failure
    Terminating the configuration change session…………..Done.
The configuration change session has failed.

VÉRIFICATIONS :

#symmaskdb -sid XXXX list database -dir 4D -p 0 -v

Symmetrix ID            : 00029010XXXX

Database Type           : Type6
Last updated at         : 05:11:50 PM on Wed Jul 17,2013

Director Identification : FA-4D
Director Port           : 0

Originator Port wwn  : 2100001b3202XXXX
Type                 : Fibre
User-generated Name  : SSIN001/2100001b3202XXXX
Visibility           : No
FCID Lockdown        : No
Lun Offset           : No
Heterogeneous Host   : No
Port Flag Overrides  : Yes
Enabled            : Common_Serial_Number(C)
Disabled           : N/A
Dynamic Addressing   : No
Authentication State : N/A
Devices              : 247C 2480

Originator Port wwn  : 50014380017aXXXX
Type                 : Fibre
User-generated Name  : HPVH003/F1F0
Visibility           : No
FCID Lockdown        : No
Lun Offset           : No
Heterogeneous Host   : No
Port Flag Overrides  : Yes
Enabled            : Common_Serial_Number(C)
Volume_Set_Addressing(V)
SPC2_Protocol_Version(SPC2)
SCSI_Support1(OS2007)
Disabled           : N/A
Dynamic Addressing   : No
Authentication State : N/A
Devices              : 040F 0A8C 0A9C 0AAC 0ABC 0ACC 0D04 0DF0
0E00 0E94 0F9E 0FAE 1338 1348 18B0 195A
195E 1962 1966 196A 196E 1976 197A 197E
1982 1E56 202B 22DC 2443:2446 24CB 24CF
24D7 24FF 254A 2932 2954 298A 29E8 2A5C
2B60 2C34 2C38 2CD4 2DE8 2F74 3275 3536
353A

Originator Port wwn  : 500143800172XXXX
Type                 : Fibre
User-generated Name  : HPVH002/500143800172XXXX
Visibility           : No
FCID Lockdown        : No
Lun Offset           : No
Heterogeneous Host   : No
Port Flag Overrides  : Yes
Enabled            : Common_Serial_Number(C)
Volume_Set_Addressing(V)
SPC2_Protocol_Version(SPC2)
Disabled           : N/A
Dynamic Addressing   : No
Authentication State : N/A
Devices              : 0681 08BB 0AE4 0C54 0CEC 1318 1328 1A90:1A92
2043 2123 2269 24DB 24DF 24E3 24E7 24EB
24EF 24F3 24F7 2509 250B 2531 2533:2535
2539 253D 2541 2545 29D4 2DD4 2DDC 3000
3050:3055 3145:3146 3253 3257 325B 3263
3277 329F:32A4 32B8 3356 375C 3760

Originator Port wwn  : 10000000c9981cb3
Type                 : Fibre
User-generated Name  : CL1109E2/1cb3
Visibility           : No
FCID Lockdown        : No
Lun Offset           : No
Heterogeneous Host   : No
Port Flag Overrides  : Yes
Enabled            : Common_Serial_Number(C)
SPC2_Protocol_Version(SPC2)
Disabled           : N/A
Dynamic Addressing   : No
Authentication State : N/A
Devices              : 1FAF 2503 2505 2530 2AD8 2B08 2B0C 2B10
2B14 3233 3704 3708 370C 3710 3714 3718
371C 3720 3724 3728 372C 3730

Originator Port wwn  : 500143800119XXXX
Type                 : Fibre
User-generated Name  : SRV_HP/500143800119XXXX
Visibility           : No
FCID Lockdown        : No
Lun Offset           : No
Heterogeneous Host   : No
Port Flag Overrides  : Yes
Enabled            : Common_Serial_Number(C)
Volume_Set_Addressing(V)
Disabled           : N/A
Dynamic Addressing   : Yes
Authentication State : N/A
Devices              : 03C7 1E42 1F43 1FD5 257A 257E 2582 2586
258A 258E 2592 259E:25A0 28DA 2E9C 3267
326B 3552

Originator Port wwn  : 500143800119XXXX
Type                 : Fibre
User-generated Name  : SRV_HP/500143800119XXXX
Visibility           : No
FCID Lockdown        : No
Lun Offset           : No
Heterogeneous Host   : No
Port Flag Overrides  : No
   Dynamic Addressing   : Yes
Authentication State : N/A
Devices              : None

#symmaskdb -sid XXXX list database -dir 7D -p 0 -v

Symmetrix ID            : 00029010XXXX

Database Type           : Type6
Last updated at         : 05:11:50 PM on Wed Jul 17,2013

Director Identification : FA-7D
Director Port           : 0

Originator Port wwn  : 10000000c956XXXX
Type                 : Fibre
User-generated Name  : IBMPROD24/hba0
Visibility           : No
FCID Lockdown        : No
Lun Offset           : No
Heterogeneous Host   : No
Port Flag Overrides  : Yes
Enabled            : Common_Serial_Number(C)
SCSI_3(SC3)
Disabled           : N/A
Dynamic Addressing   : No
Authentication State : N/A
Devices              : 153A 153E

Originator Port wwn  : 10000000c956XXXX
Type                 : Fibre
User-generated Name  : IBMPROD25/hba0
Visibility           : No
FCID Lockdown        : No
Lun Offset           : No
Heterogeneous Host   : No
Port Flag Overrides  : Yes
Enabled            : Common_Serial_Number(C)
SCSI_3(SC3)
Disabled           : N/A
Dynamic Addressing   : No
Authentication State : N/A
Devices              : 0F38 0F48 0F58 0F60

Originator Port wwn  : 10000000c989XXXX
Type                 : Fibre
User-generated Name  : MX1109I2/a26b
Visibility           : No
FCID Lockdown        : No
Lun Offset           : No
Heterogeneous Host   : No
Port Flag Overrides  : Yes
Enabled            : Common_Serial_Number(C)
SPC2_Protocol_Version(SPC2)
Disabled           : N/A
Dynamic Addressing   : No
Authentication State : N/A
Devices              : 2B1C 2B20

Originator Port wwn  : 10000000c989xxxx
Type                 : Fibre
User-generated Name  : TA1101W5/a296
Visibility           : No
FCID Lockdown        : No
Lun Offset           : No
Heterogeneous Host   : No
Port Flag Overrides  : Yes
Enabled            : Common_Serial_Number(C)
SPC2_Protocol_Version(SPC2)
Disabled           : N/A
Dynamic Addressing   : No
Authentication State : N/A
Devices              : 252A

Originator Port wwn  : 10000000c98cxxxx
Type                 : Fibre
User-generated Name  : MX1109I3/634c
Visibility           : No
FCID Lockdown        : No
Lun Offset           : No
Heterogeneous Host   : No
Port Flag Overrides  : Yes
Enabled            : Common_Serial_Number(C)
SPC2_Protocol_Version(SPC2)
Disabled           : N/A
Dynamic Addressing   : No
Authentication State : N/A
Devices              : 04C3 1C10

Originator Port wwn  : 10000000c998xxxx
Type                 : Fibre
User-generated Name  : MX1101I2/17d6
Visibility           : No
FCID Lockdown        : No
Lun Offset           : No
Heterogeneous Host   : No
Port Flag Overrides  : No
Dynamic Addressing   : No
Authentication State : N/A
Devices              : None

Originator Port wwn  : 10000000c998xxxx
Type                 : Fibre
User-generated Name  : MX1101I3/1893
Visibility           : No
FCID Lockdown        : No
Lun Offset           : No
Heterogeneous Host   : No
Port Flag Overrides  : Yes
Enabled            : Common_Serial_Number(C)
Disabled           : SPC2_Protocol_Version(SPC2)
Dynamic Addressing   : No
Authentication State : N/A
Devices              : 2B80 2B88

Originator Port wwn  : 500143800119XXXX
Type                 : Fibre
User-generated Name  : SRV_HP/500143800119XXXX
Visibility           : No
FCID Lockdown        : No
Lun Offset           : No
Heterogeneous Host   : No
Port Flag Overrides  : Yes
Enabled            : Common_Serial_Number(C)
Volume_Set_Addressing(V)
Disabled           : N/A
Dynamic Addressing   : Yes
Authentication State : N/A
Devices              : 03C7 1E42 1F43 1FD5 257A 257E 2582 2586
258A 258E 2592 259E:25A0 28DA 2E9C 3267
326B 3552

#symmaskdb -sid XXXX -host SRV_HP list capac

Symmetrix ID      : 00029010XXXX

Host Name         : SRV_HP

Identifiers Found : 500143800119XXXX
500143800119XXXX

Device  Cap(MB)  Attr  Dir:P
——  ——-  —-  —-
03C7      27885   (M)   4D:0, 7D:0
1E42     111540   (M)   4D:0, 7D:0
1F43      27885   (M)   4D:0, 7D:0
1FD5      27885         4D:0, 7D:0
257A     111540   (M)   4D:0, 7D:0
257E     111540   (M)   4D:0, 7D:0
2582     111540   (M)   4D:0, 7D:0
2586     111540   (M)   4D:0, 7D:0
258A     111540   (M)   4D:0, 7D:0
258E     111540   (M)   4D:0, 7D:0
2592     111540   (M)   4D:0, 7D:0
259E      27885         4D:0, 7D:0
259F      27885         4D:0, 7D:0
25A0      27885         4D:0, 7D:0
28DA      27885         4D:0, 7D:0
2E9C     111540   (M)   4D:0, 7D:0
3267     111540   (M)   4D:0, 7D:0
326B     111540   (M)   4D:0, 7D:0
3552     111540   (M)   4D:0, 7D:0

—————————–

MB Total:1533675
GB Total: 1497.7

#symmaskdb -sid XXXX -wwn 500143800119XXXX list devs

Symmetrix ID        : 00029010XXXX

Originator Port wwn : 500143800119XXXX
User-generated Name : SRV_HP/500143800119XXXX

Sym Dev                                               LUN
Name    Dir:P  Physical Device Name     VBUS  TID  SYMM HOST  Attr  Cap(MB)
——  —–  ———————–  —-  —  —- —-  —-  ——-
03C7     4D:0  Not Visible                 0    0   217  223  (M)     27885
1E42     4D:0  Not Visible                 0    0   223  224  (M)    111540
1F43     4D:0  Not Visible                 0    0   181  210  (M)     27885
1FD5     4D:0  Not Visible                 0    0   216    0          27885
257A     4D:0  Not Visible                 0    0   134  211  (M)    111540
257E     4D:0  Not Visible                 0    0   133  212  (M)    111540
2582     4D:0  Not Visible                 0    0   132  213  (M)    111540
2586     4D:0  Not Visible                 0    0   131  214  (M)    111540
258A     4D:0  Not Visible                 0    0   130  215  (M)    111540
258E     4D:0  Not Visible                 0    0   140  216  (M)    111540
2592     4D:0  Not Visible                 0    0   137  217  (M)    111540
259E     4D:0  Not Visible                 0    0   135  220          27885
259F     4D:0  Not Visible                 0    0   136  221          27885
25A0     4D:0  Not Visible                 0    0   141  222          27885
28DA     4D:0  Not Visible                 0    0   1a2  225          27885
2E9C     4D:0  Not Visible                 0    0   1a3  226  (M)    111540
3267     4D:0  Not Visible                 0    0   1b2  200  (M)    111540
326B     4D:0  Not Visible                 0    0   1b3  201  (M)    111540
3552     4D:0  Not Visible                 0    0   1b4  202  (M)    111540

#symmaskdb -sid XXXX -wwn 500143800119XXXX list devs

Symmetrix ID        : 00029010XXXX

Originator Port wwn : 500143800119XXXX
User-generated Name : SRV_HP/500143800119XXXX

Sym Dev                                               LUN
Name    Dir:P  Physical Device Name     VBUS  TID  SYMM HOST  Attr  Cap(MB)
——  —–  ———————–  —-  —  —- —-  —-  ——-
03C7     7D:0  Not Visible                         0    0   217  223  (M)     27885
1E42     7D:0  Not Visible                         0    0   223  224  (M)    111540
1F43     7D:0  Not Visible                         0    0   181  210  (M)     27885
1FD5     7D:0  Not Visible                         0    0   216    0          27885
257A     7D:0  Not Visible                         0    0   134  211  (M)    111540
257E     7D:0  Not Visible                         0    0   133  212  (M)    111540
2582     7D:0  Not Visible                         0    0   132  213  (M)    111540
2586     7D:0  Not Visible                         0    0   131  214  (M)    111540
258A     7D:0  Not Visible                         0    0   130  215  (M)    111540
258E     7D:0  Not Visible                         0    0   140  216  (M)    111540
2592     7D:0  Not Visible                         0    0   137  217  (M)    111540
259E     7D:0  Not Visible                         0    0   135  220          27885
259F     7D:0  Not Visible                         0    0   136  221          27885
25A0     7D:0  Not Visible                         0    0   141  222          27885
28DA     7D:0  Not Visible                         0    0   1a2  225          27885
2E9C     7D:0  Not Visible                         0    0   1a3  226  (M)    111540
3267     7D:0  Not Visible                         0    0   1b2  200  (M)    111540
326B     7D:0  Not Visible                         0    0   1b3  201  (M)    111540
3552     7D:0  Not Visible                         0    0   1b4  202  (M)    111540
CORRECTION :

#vi « mapping_SRV_HP_18072013.txt »
« mapping_SRV_HP_18072013.txt » 2 lines, 128 characters

map dev 1D7A to dir 4D:0 lun=1C0, wwn=500143800119XXXX, host_lun=227;
map dev 1D7A to dir 7D:0 lun=1C0, wwn=500143800119XXXX, host_lun=227;

« mapping_SRV_HP_18072013.txt » 2 lines, 142 characters

RELANCE:

#symconfigure -sid XXXX -f « mapping_SRV_HP_18072013.txt » -v -nop preview

A Configuration Change operation is in progress. Please wait…

Establishing a configuration change session……………Established.
Processing symmetrix 00029010XXXX
{
map dev 1D7A to dir 4D:0 lun=1C0, wwn=500143800119XXXX, masking host_lun=227;
map dev 1D7A to dir 7D:0 lun=1C0, wwn=500143800119XXXX, masking host_lun=227;
}
Performing Access checks…………………………….Allowed.
Checking Device Reservations…………………………Allowed.
Submitting configuration changes……………………..Submitted
Locking devices…………………………………….Locked.
Validating configuration changes……………………..Validated.
Closing configuration change request………………….Closed.
Terminating the configuration change session…………..Done.

The configuration change session has completed successfully.

#symconfigure -sid XXXX -f « mapping_SRV_HP_18072013.txt » -v -nop prepare

A Configuration Change operation is in progress. Please wait…

Establishing a configuration change session……………Established.
Processing symmetrix 00029010XXXX
{
map dev 1D7A to dir 4D:0 lun=1C0, wwn=500143800119XXXX, masking host_lun=227;
map dev 1D7A to dir 7D:0 lun=1C0, wwn=500143800119XXXX, masking host_lun=227;
}

Performing Access checks…………………………….Allowed.
Checking Device Reservations…………………………Allowed.
Submitting configuration changes……………………..Submitted
Locking devices…………………………………….Locked.
Validating configuration changes……………………..Validated.
Initiating PREPARE of configuration changes……………Prepared.
Closing configuration change request………………….Closed.
Terminating the configuration change session…………..Done.

The configuration change session has completed successfully.

#symconfigure -sid XXXX -f « mapping_SRV_HP_18072013.txt » -v -nop commit

A Configuration Change operation is in progress. Please wait…

Establishing a configuration change session……………Established.
Processing symmetrix 00029010XXXX
{
map dev 1D7A to dir 4D:0 lun=1C0, wwn=500143800119XXXX, masking host_lun=227;
map dev 1D7A to dir 7D:0 lun=1C0, wwn=500143800119XXXX, masking host_lun=227;
}

Performing Access checks…………………………….Allowed.
Checking Device Reservations…………………………Allowed.
Submitting configuration changes……………………..Submitted
Locking devices…………………………………….Locked.
Validating configuration changes……………………..Validated.
Initiating PREPARE of configuration changes……………Prepared.
Initiating COMMIT of configuration changes…………….Queued.
COMMIT requesting required resources………………….Obtained.
Step 002 of 014 steps……………………………….Executing.
Step 002 of 014 steps……………………………….Executing.
Step 002 of 014 steps……………………………….Executing.
Step 011 of 014 steps……………………………….Executing.
Step 011 of 014 steps……………………………….Executing.
Step 011 of 014 steps……………………………….Executing.
Polling……………………………………………Timed out.
Local:  COMMIT……………………………………..Done.
Terminating the configuration change session…………..Done.

The configuration change session has successfully completed.

#symmask -sid XXXX refresh

#Refresh Symmetrix FA directors with contents of SymMask database 00029010XXXX (y/[n]) ? y

Symmetrix FA directors updated with contents of SymMask Database 00029010XXXX
